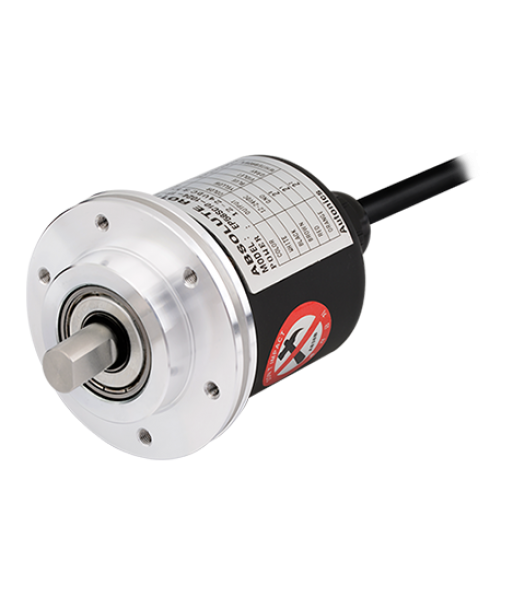

Encoder, Absolute, 58mm Body, 10mm Shaft, 360 Divisions Per Rev, BCD Code, PNP Output, CW Increase, 12-24 VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Shaft Inner Diameter |
N/A 10 mm |
Resolution |
N/A 360 pulses/rev |
Control Output |
N/A Positive Negative Positive (PNP) |
Direct Current (DC) Voltage |
N/A 12 to 24 V |
Type |
N/A Absolute (Single-turn) |
Connector Type |
N/A Cable |
Color |
N/A Gray |
Shaft Type |
N/A 58 mm Shaft (Clamping) |
Rotating Direction |
N/A Clockwise (CW) |
Weight |
N/A 1.18 lb |
